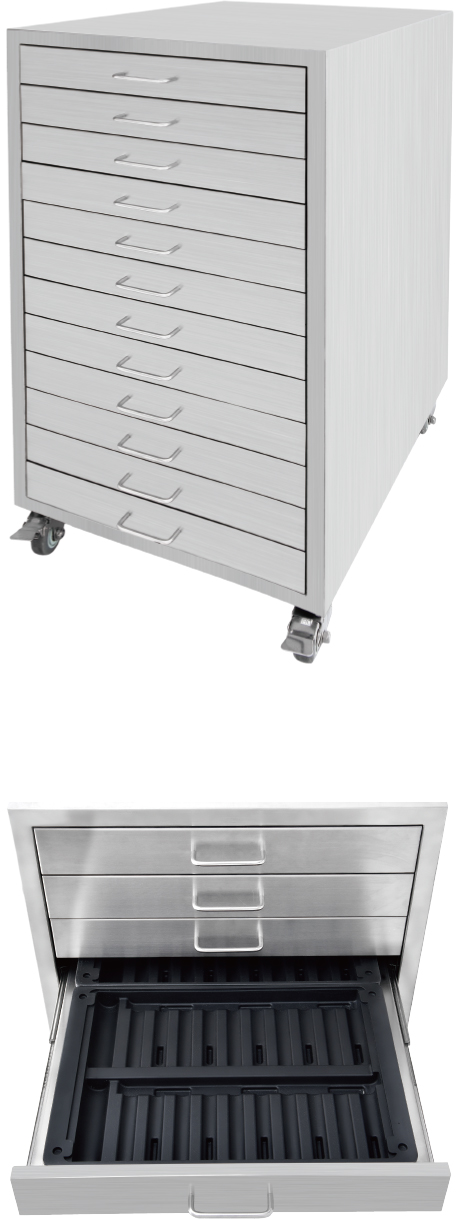

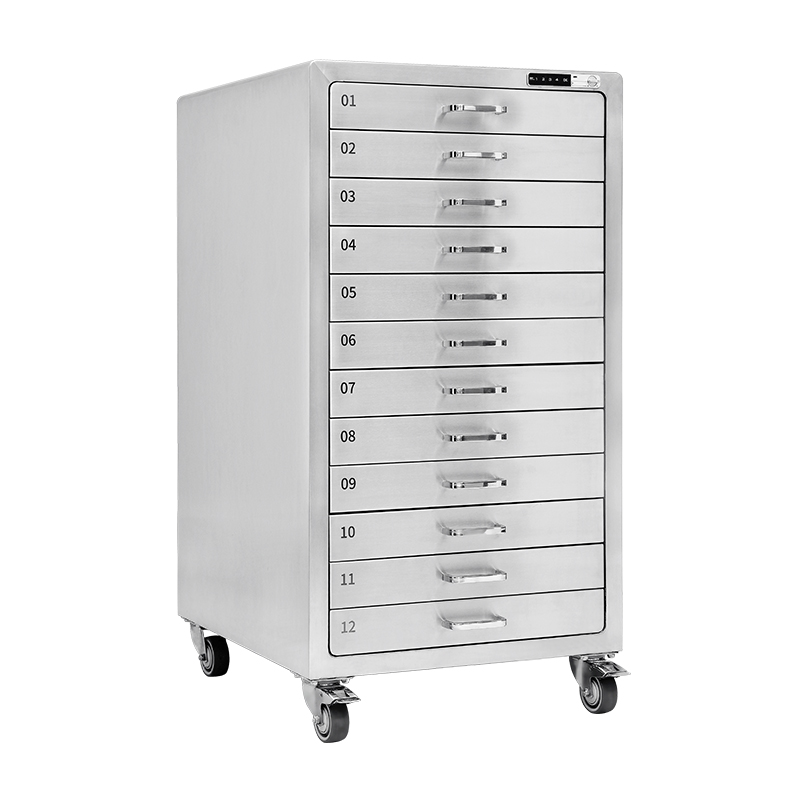

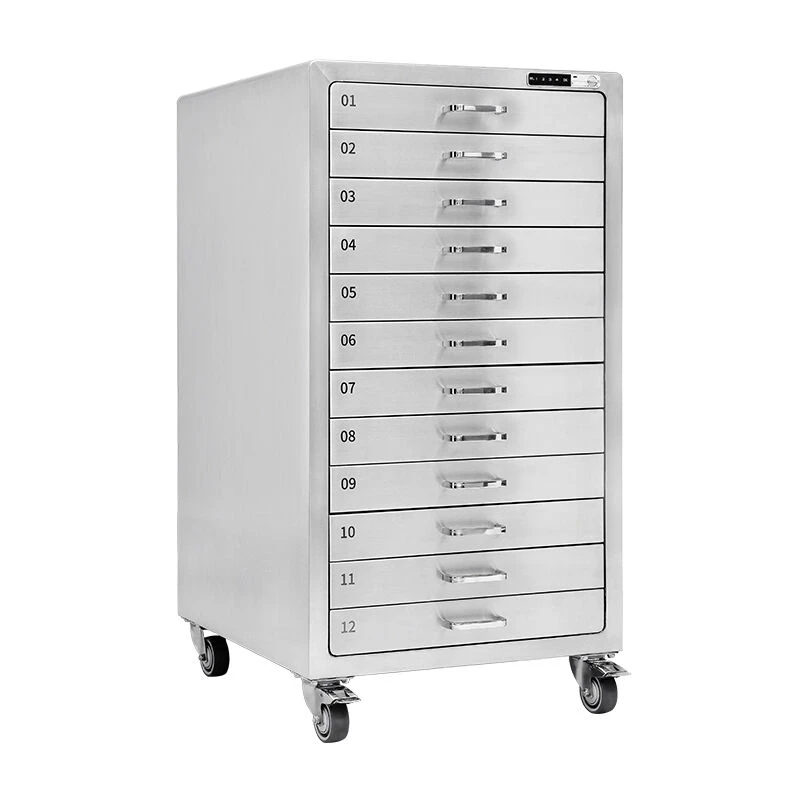

1. Twelve drawers with electronic combination locks and heavy-duty stainless steel slides for reliable load-bearing performance.
The cabinet features a 12-drawer layout with a symmetrical, layered design, rationally allocating storage space while ensuring balanced load distribution throughout the cabinet. Each drawer is equipped with an industrial-grade electronic combination lock, supporting multi-access management (administrator and operator permissions are tiered), accurately recording the time of each lock opening and closing and the operator's information, effectively preventing accidental, incorrect, or lost molds, meeting the traceability management needs of the pharmaceutical industry for precision molds. The slides operate smoothly without jamming, with noise levels below 30 decibels when opening and closing drawers, and feature an anti-fall-out limit design to prevent drawers from tipping over when fully extended. The drawer panels are recessed, fitting snugly against the cabinet body without protruding structures, reducing dust accumulation and facilitating overall cleaning and disinfection.

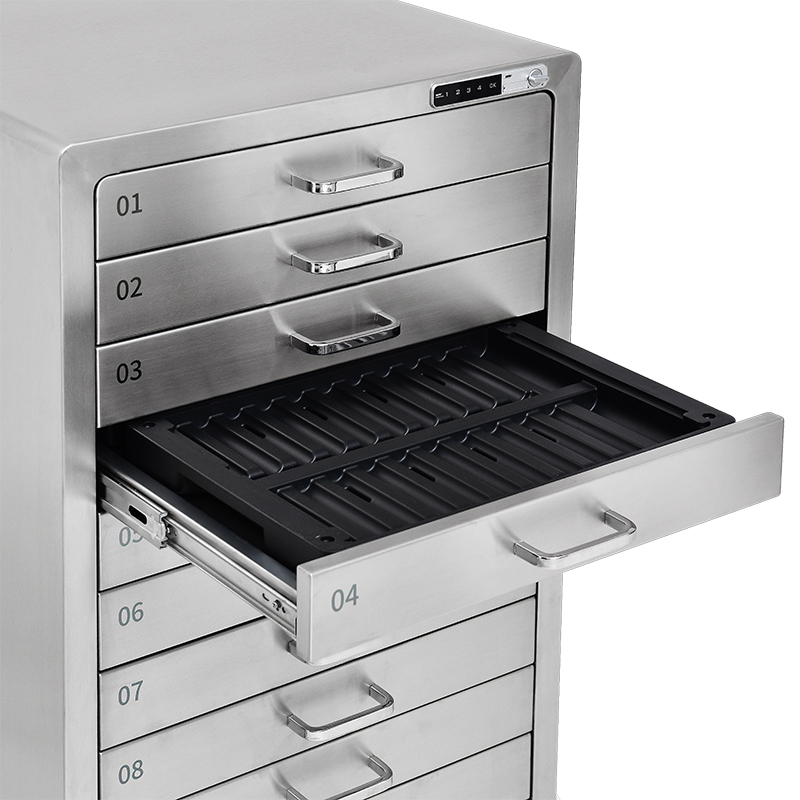

2. Each built-in PVC injection-molded case holds 480 tablet punches.
Each drawer comes standard with a customized PVC injection-molded case. The case is made of food-grade PVC material in a single injection molding process, with no seams and no odor emissions, meeting GMP requirements for storage containers used in contact with pharmaceutical production equipment. The case is divided into compartments based on the standard dimensions of tablet punches. Each compartment is precisely calculated to stably hold one tablet punch, with each case holding 40 punches. Twelve drawers combined with the cases can hold a total of 480 tablet punches, achieving standardized and precise classification and storage. The case surface is treated with anti-static agents to effectively prevent dust and impurities from being attracted to the punches due to static electricity. The rounded edges of the compartments prevent damage from bumps and knocks when handling the punches. The cases are secured to the drawers with snap-fit mechanisms for easy access. They can also be removed individually for cleaning and disinfection, further enhancing the cleanliness of the stored molds.
3. Size (mm): L700*W600*H1162, size can be customized.
This size has been optimized for various scenarios and offers multiple advantages: The compact rectangular structure occupies only 0.42㎡, allowing for flexible integration into limited spaces such as workshop mold storage areas and production line adjacent areas without disrupting production flow; the 1162mm height combined with a 12-drawer tiered design, with upper drawers suitable for standing operation and lower drawers for easy bending and access, conforms to ergonomic principles and reduces operator fatigue. Adjustable anti-slip feet at the bottom of the cabinet allow for fine-tuning based on floor flatness, ensuring stable placement and preventing direct contact between the cabinet and the floor, thus avoiding cleaning dead zones. For diverse needs in different scenarios, we offer comprehensive customization services: the number of drawers can be increased or decreased based on the number of molds; the cabinet's length, width, and height can be adjusted to fit narrow spaces or large mold storage requirements.
![]()
