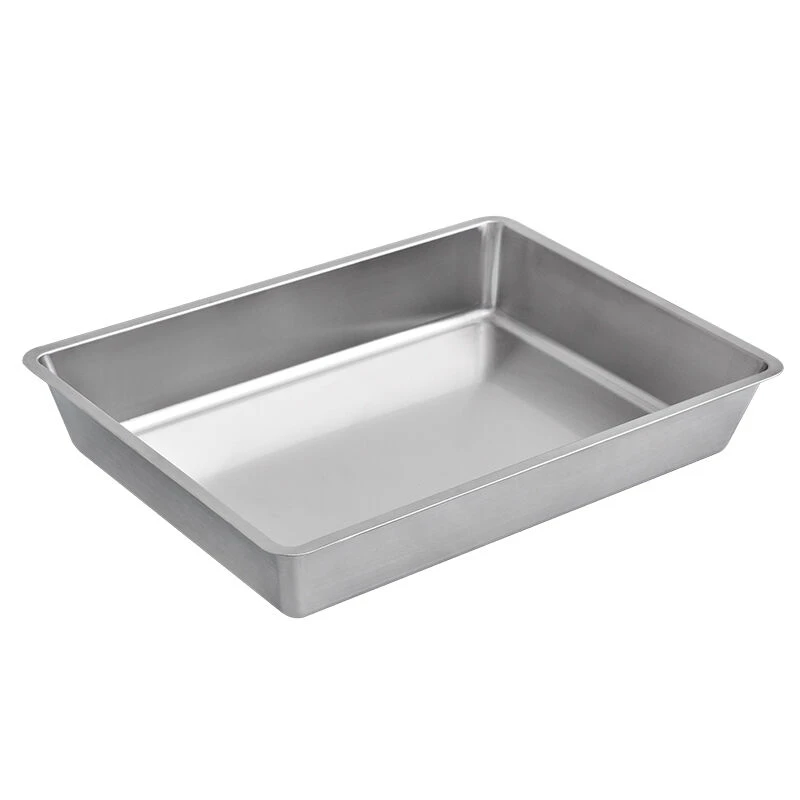

1. Beveled Side Design: Angled sidewalls with a gentle gradient make it easy to pour out liquid residue and reduce the accumulation of liquid medicine/food residue.
This instrument tray focuses on the core requirements of GMP certification for "easy cleaning and low residue." Its scientifically optimized sloping side structure completely solves the problem of liquid and residue accumulation. The sidewalls have a gentle slope with a smooth, continuous surface, without any protrusions or depressions. When there is residual liquid medicine, cleaning wastewater, or food residue in the tray, simply tilting the tray slightly allows gravity to quickly divert the liquid into the designated container, eliminating the need for additional wiping and significantly improving cleaning efficiency. Meanwhile, the gentle slope design balances practicality and safety, avoiding the risk of equipment slippage due to sharp inclines and reducing the adhesion area of liquids and residues on the sidewalls. The smooth, polished slope combined with the gentle angle makes it difficult for residues to adhere, structurally eliminating the source of contamination. This fully meets the stringent GMP certification requirements for "residue-free and easy-to-clean" equipment, making it suitable for high-precision cleanroom environments such as pharmaceuticals and food processing.
2. Fully rounded interior corners: Avoid micro-gaps caused by traditional welding processes, completely eliminating blind spots during cleaning.
The tray innovatively adopts an integrated, fully rounded interior corner process, completely eliminating the cleaning hazards of micro-gaps and sharp angles caused by traditional welding processes. This is a core structural highlight that has passed GMP certification. The rounded interior corners are formed using CNC stamping and integral bending technology, with no welding seams and a mirror-like smooth surface, completely eliminating the risk of bacteria growth and residual contaminants in micro-gaps. This design enables "all-around, no-dead-angle coverage" in the cleaning process: whether it's high-pressure water jet rinsing, alcohol wiping, or high-temperature steam sterilization, the cleaning medium can reach every corner without additional disassembly or special treatment, easily achieving the cleanliness level required for GMP certification. Simultaneously, the fully rounded corner design avoids the risk of sharp inner corners scratching instrument surfaces, operator hands, and protective equipment, balancing cleanliness and safety, providing double protection for high-demand scenarios.
3. Customizable sizes, compatible with 316L material.
For special needs such as highly corrosive environments (e.g., frequent use of chlorine-containing disinfectants, contact with acidic/alkaline solutions) and high-purity media storage (e.g., biological agents, high-end medical devices), customization with 316L stainless steel material is supported. Customized products also meet GMP certification requirements. 316L material, based on 304 stainless steel, incorporates molybdenum (≥2% molybdenum content), significantly improving its resistance to pitting corrosion, crevice corrosion, and acid and alkali corrosion. It can withstand harsh working conditions for extended periods without rusting or deterioration.
4. Size (mm): L600*W450*H100, size can be customized.
Full-dimensional size and structural customization is supported to meet the personalized needs of different scenarios. The customization process is standardized: requirements communication → parameter confirmation → drawing design → sample verification → mass production. Full technical support is provided throughout. All customized products strictly adhere to GMP certification standards, ensuring a flawless structure, compliant materials, easy cleaning, and precise fit to actual usage scenarios.
