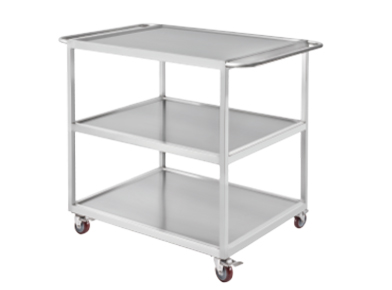

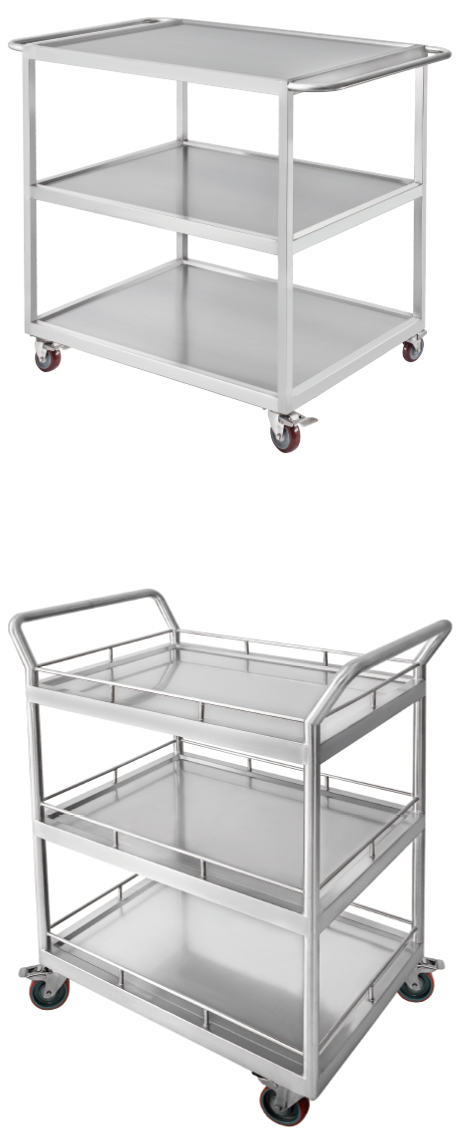

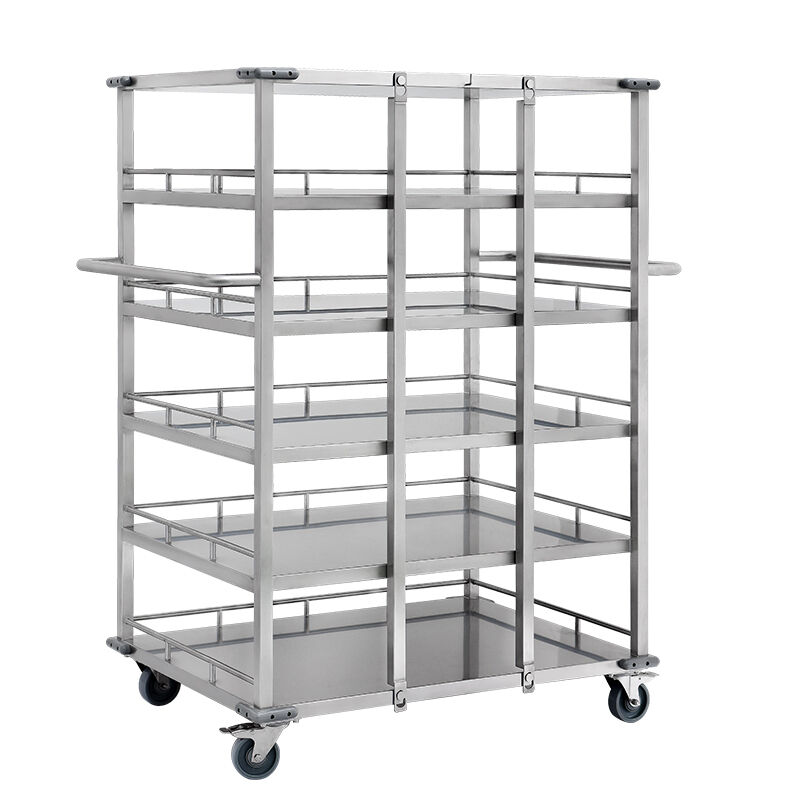

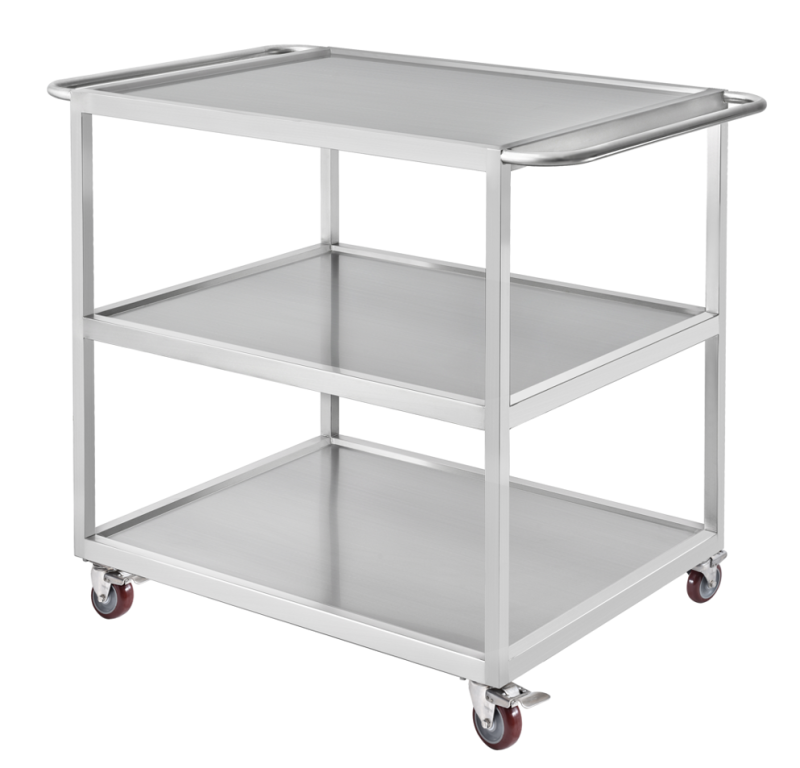

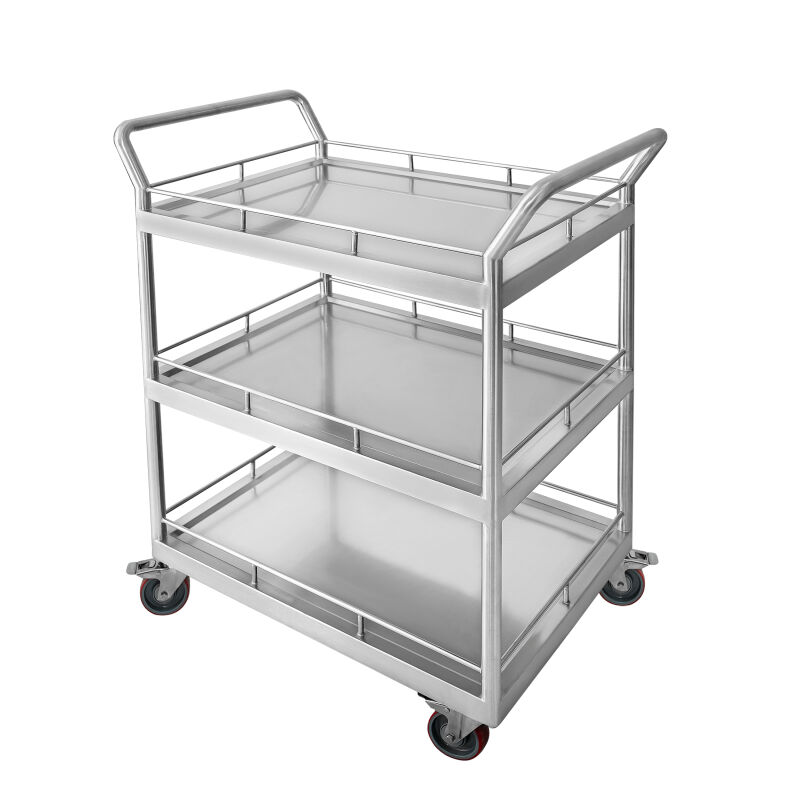

1. Multi-layered shelf design: Layered storage adapts to specialized needs and improves transport efficiency.
Utilizing a 2-3 layer detachable stainless steel shelf structure (number of layers can be configured as needed), materials can be categorized and stored in layers, avoiding cross-contamination between different types of materials, meeting GMP cleanroom management requirements. The shelf shelves are made of 304/316L food-grade stainless steel, integrally stamped with a brushed and polished surface, free of weld points, burrs, and dead corners for dirt and grime accumulation, allowing direct contact with sensitive materials such as pharmaceuticals, food, and medical devices. The shelf spacing is flexibly adjustable (standard adjustable range 150-300mm), suitable for storing bottled, boxed, and palletized materials. The multi-layered design increases single-transport capacity by 2-3 times, significantly improving transfer efficiency.
2. Universal Wheels with Brakes: Flexible Mobility and Stable Design.
Equipped with four high-precision universal wheels at the bottom, the wheels are made of medical-grade silent rubber and feature a stainless steel sealed wheel frame. The noise level during pushing is ≤50dB, making it suitable for low-noise GMP environments such as pharmaceutical cleanrooms and sterile laboratories. The wheel set integrates a linked braking mechanism with a "one-step double-lock" design. Stepping on the brake pedal simultaneously locks the wheels' steering and rolling, ensuring a stable and wobbly ride after braking. This effectively prevents accidental slippage during loading/unloading or when stationary. The 360° steering function allows the trolley to maneuver flexibly in narrow workshop aisles, balancing mobility and stability.
3. Size (mm): L900*W600*H900, size can be customized.
A single-layer shelf can bear a weight of 150-200kg, and the overall load-bearing capacity meets the needs of bulk material handling. The frame is welded from thickened stainless steel tubing, providing high structural strength and corrosion resistance, and can withstand GMP cleaning and disinfection processes such as high-temperature washing and chemical disinfectant wiping. It supports full-dimensional customization, and the length, width and height dimensions, the number of shelves/spacing can be adjusted according to material specifications (such as the diameter of the material bucket, the height of the reagent rack), the width of the workshop aisle, and storage needs. Additional accessories such as guardrails and hooks can also be customized to adapt to personalized usage scenarios.
